Mobile Pellet Plant Unit (250-600Kg/H)

The mobile pellet plant unit is our Star Product, because it is an integrated one that consists of hammer mill, material storage bin, screw feeder, flat die pellet mill, vibrating screen and scraper conveyor on one foundation, so that it is convenient to move and use.
This pelleting plant unit has been exported to the following countries: Chile, Greece, Italy, Latvia, Namibia, Portugal, Rumania, Spain, and Ukraine.

Raw material for this mobile pelleting plant

Wood chip, sawdust, stalk, straw, twig, rice husk, peanut shell, forage, etc.
Model MPL300 MPL400
Capacity 250-350kg/h 350-450kg/h
Pellet diameter 6-12mm
Pellet density 1.1-1.3t/m3
Total Power 41.25kw 49.25kw
Overall size 3500*1960*3500mm 3500*1960*3500mm
integrated biomass pelleting plant biomass pelleting plant

ABC Machinery is a comprehensive enterprise specializing in biomass pellet machinery, integrating R&D, production and sales. In addition to the conventional models, all products can be customized according to your actual needs. Please don't hesitate to contact us!

Applicable to the following raw materials and many others

mobile pellet plant raw material

send enquiry


Advantages of mobile pellet plant unit main parts

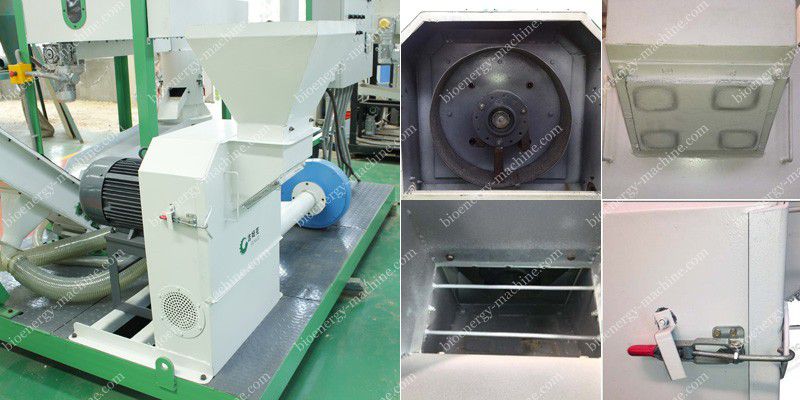

  1. Hammer mill: It has 15 hammer blades. By changing different positions of the hammer blades, the hammer mill can be used to crush woody or biomass or forage materials with size less than 20 mm diameter, the size of the crushed output material can reach diameter 3-5mm.hammer mill

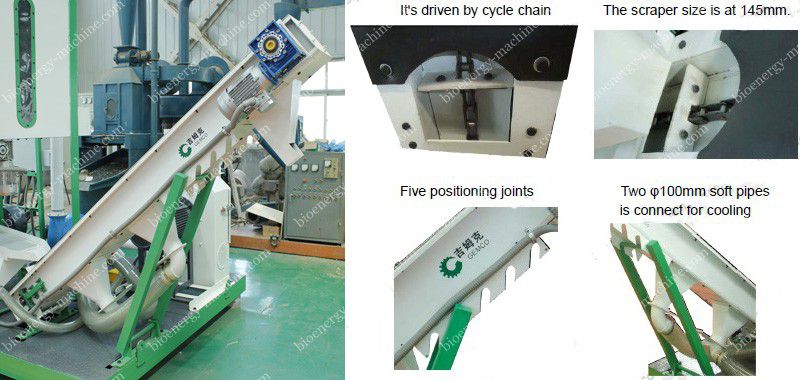

  2. Conveying part: there are 3 conveying sections in this pelleting plant: pneumatic conveying unit, screw conveyor, and scraper conveyor. All these sections are efficient in conveying raw material or finished pellets.
    conveying part

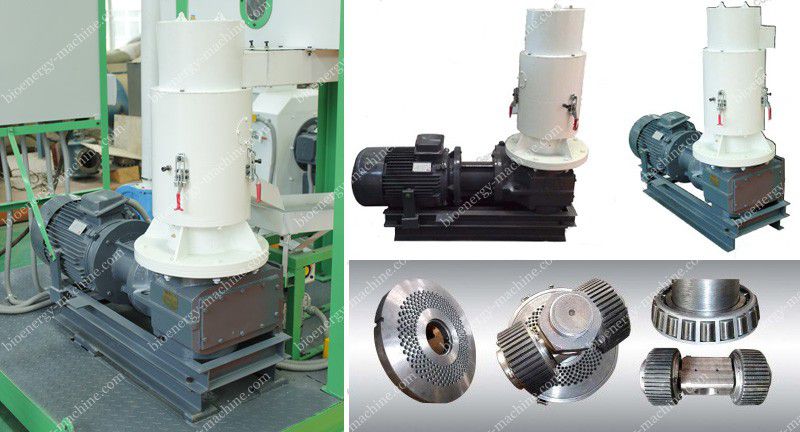

  3. Pellet mill: Cost-effective small pellet mill with best quality. There is also a water adding system connected with the pellet mill to adjust the moisture content of mixed material. Main parts of pellet mill are made from high steel alloy with high quality and long using life.pellet mill

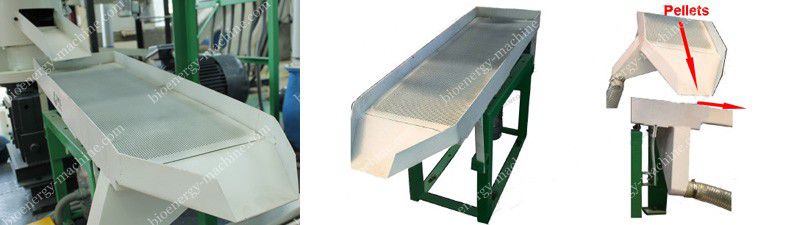

  4. Vibrating sieve: the vibrating sieve can effectively screen out dust and powder, at the same time cooling the pllets. While the screened out powder is collected for reproduction.vibrating sieve

Pellets made by movable small pellet plant

pellets made by mobile pellet plant


Please provide us with project information as much as possible:

  • For a complete project: the material availability,the required output capacity,the process technology,your budgetary and financing status,the estimated starting time,etc.
  • For singular machinery: the model,the capacity,your budgetary information,other requirements,etc.
  • For spare parts: size and dimensions,material and weight,and your drawings with details,you can send the drawing to

Detailed information is greatly helpful for us to give you the best-customized offer/quotation at the soonest time.
