Small Biomass Pellet Line (200-800Kg/H)

Small pellet production line is a combination of biomass crushing, conveying, drying, pelletizing and cooling parts.

Small Pellet Line Capacity: 200-800kg/h (i.e. the capacity of one flat die pellet machine, can be combined with more than one pellet machine according to the actual demand to achieve a higher capacity.)

Applicable raw materials: almost all kinds of biomass, such as wood, straw, stalk, peanut shell, rice husk, bamboo shaving, chicken manure, grass, alfalfa, etc.

The core equipment of small biomass pellet processing plant is flat die pellet mill, which has the advantages of low cost, easy to install and maintain, and wide range of application compared with ring die pellet plant. All the equipment may include hammer mill/crusher, conveyor, dryer, small pellet mill, pellet cooler and so on. Not all of these are necessary; customers can choose according to your specific production needs and budget. Please contact us for the best biomass pellet production solution!

Pictures of small pellet lines

Our small pellet line is designed for small scale production and is designed to help you produce high quality pellets easily and quickly. Whether you are a start-up or a large organization requiring small pellet production, our small pellet processing line will meet your needs!

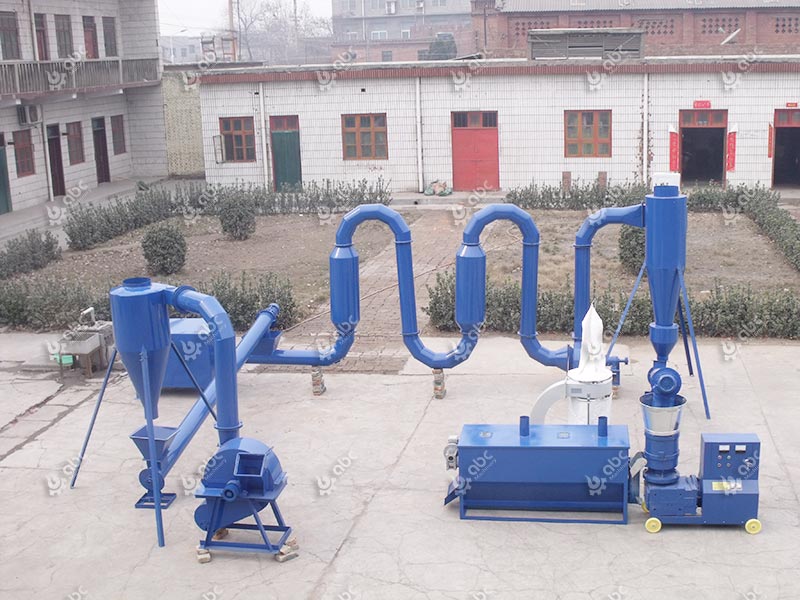

Mini Biomass Pellet Production Line at Factory Price
Cost-effective Mini Biomass Pellet Production Line

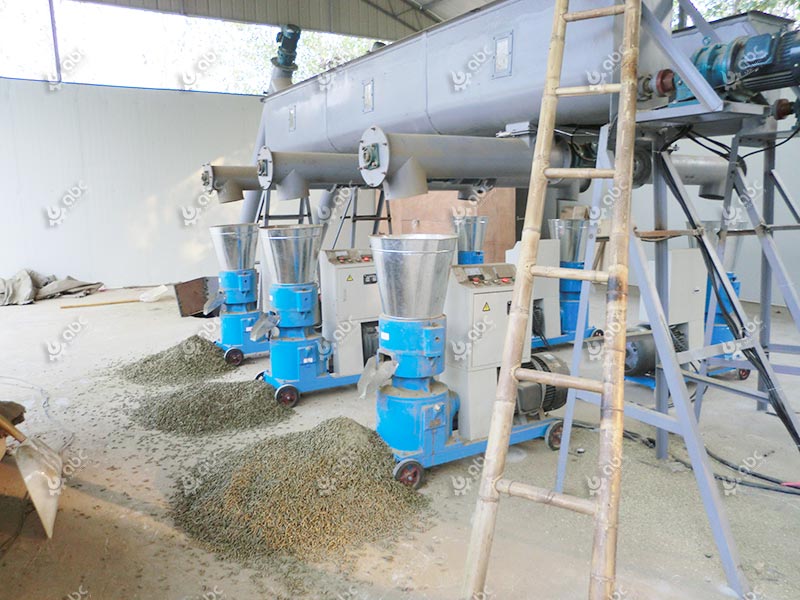

Small Biomass Pellet Mill at Work
Small Biomass Pellet Mill at Work

The Main Structure of the Small Biomass Pellet Making Line

A small pellet production line typically consists of several key components:

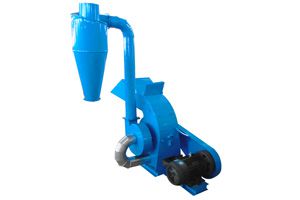

  • Hammer mill/crusher: This equipment is used to reduce the size of raw materials. The feedstock is crushed into smaller particles by repeatedly hitting it with a hammer rotating at high speed in a cylindrical chamber. Most feedstocks need to be crushed to a size of 3-5 millimeters before entering the pellet mill to prevent clogging and ensure high pellet formation rates.

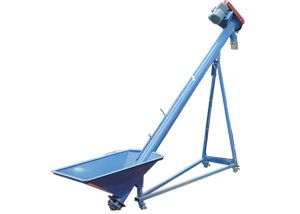

  • Conveyor: used to transport materials between processing equipment. They ensure the even transmission of materials and reduce the need for manual labor.






  • Dryer: it is essential for reducing the moisture content of raw materials. Lowering the moisture content not only improves the pellet forming rate but also enhances pellet quality.

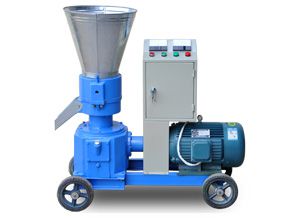

  • Small pellet mill: a critical component in biomass pellet production lines, responsible for transforming raw materials into dense, uniform pellets suitable for burning or use as animal feed. Raw materials, such as wood chips, sawdust, straw, or agricultural residues, are fed into the pellet mill through a hopper or conveyor system.
    It is compressed and extruded through the die holes under high pressure. The pressure and temperature generated during this process contribute to binding the materials together to form pellets.

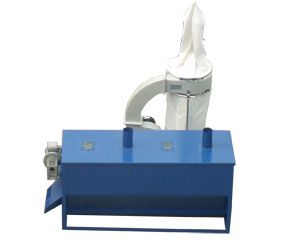

  • Pellet cooler:  The freshly formed pellets are hot and soft, so they are transferred to a pellet cooler to reduce their temperature and harden them. This step is crucial for ensuring the pellets' durability and quality.
















Why Choose a Small Pellet Line?

There are several reasons why a small pellet production line may be the right choice for you:
  • Cost-Effective: The small pellet line can save you labor costs and streamline your pellet production process.

  • Versatility: Whether you have a farm with a regular supply of waste biomass or you need to produce animal feed, a small pellet line can meet your needs.

  • Convenience: With a small pellet line, you can easily produce your own pellets without relying on external suppliers.

  • Flexible Power Options: You can choose between electric, diesel, or PTO-powered pellet mills, depending on your specific requirements
