Bagasse is highly malleable. It can directly produce a variety of panels and profiles by changing different moulds or templates, which has great market value. The realisation of high-density composite material technology not only solves the problem of polluting emissions from agricultural waste and municipal waste, but also saves limited forestry resources, which will certainly have a great impact on the global environmental protection cause. As a result, a number of people are increasingly setting up bagasse pellet production plants to reap greater benefits.
Bagasse Briquettes Making Machine Manufacturer
ABC Machinery is a modern enterprise engaged in the design, manufacture, production and sales of mechanical equipment. The main products of bagasse briquettes making production line are machine-made charcoal machines, wood shredders, industrial dryers, coal briquette equipment, carbonization furnace equipment, etc. The equipment produced has a variety of specifications, stable performance and good quality!
Uses of bagasse raw materials
1.Sugarcane bagasse has been used as feedstuff for many years.
Many scholars at home and abroad have devoted themselves to the development and research of sugar mill by-products as feed, and have achieved certain results. Sugarcane bagasse is heated and entered into yeast for fermentation. After fermentation, the gas produced is expelled cleanly and the bagasse is dried and ground into fine powder, which can be used as animal feed.
2.Bagasse as an environmentally friendly material.
- Paper making.
- Production of high-density composite materials.

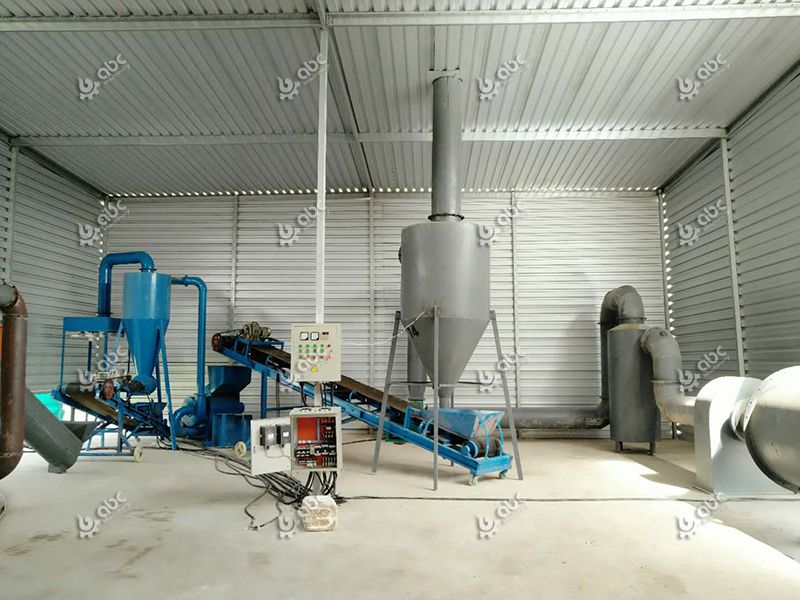

Production Process: Sugarcane Bagasse Crushing & Drying & Briquetting for Sales
Turning Waste into Treasure with Bagasse

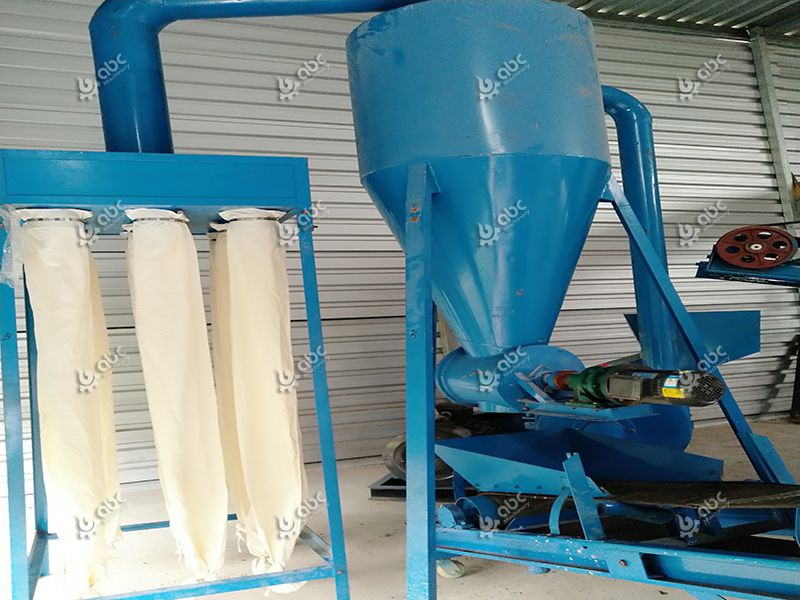

Sugarcane bagasse crushing machine. To make machine-made charcoal, the size of the raw material is required to be under 3MM. Except for sawdust and rice husk, other raw materials need to be processed by a grinder.
Sugarcane bagasse tumbler screen. When the material enters the drum unit, due to the tilting and rotation of the drum unit, the material on the screen surface is turned and rolled so that the qualified material (the product under the screen) is discharged through the screen on the outer ring of the drum, while the unqualified material (the product on the screen) is discharged through the end of the drum. Due to the turning and rolling of the material in the drum, materials stuck in the screen holes can be ejected, preventing the screen holes from being blocked. The bagasse trommel screen is mainly used for screening raw materials when producing charcoal in charcoal machines.
Belt conveyor: conveying bagasse from the screen to the bagasse dryer, with strong conveying capacity, long conveying distance, simple structure, easy maintenance, and easy to realise programmed control and automatic operation. Continuous or intermittent movement of the conveyor belt is used for conveying items under 100KG or powder or granular items. It runs fast, smoothly, with little noise, and can convey up and down slopes.
Sugarcane bagasse dryer. Before making the bars, there are also strict requirements on the humidity of the raw material, which cannot be greater than 12%. If it is greater than that, the raw material needs to be dried.

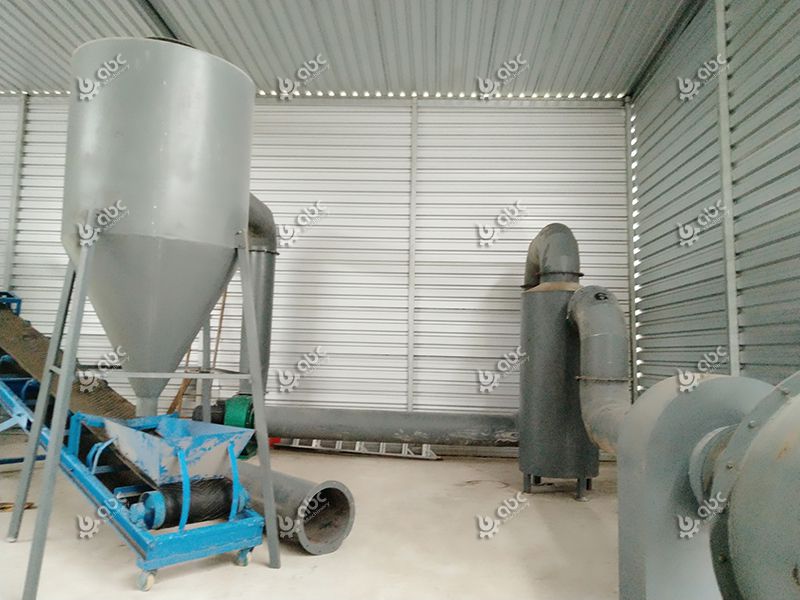

Cooling material system. This system is the cooling treatment system for bagasse after it has been dried in the dryer.
Screw feeder. This equipment is used for conveying bagasse or fine-grained material in a process that requires two or more bifurcated channels for quantitative flow control. The screw distributor enables proportional control of two or more material flows, satisfying any proportional distribution of material flows and working in an ideal condition.

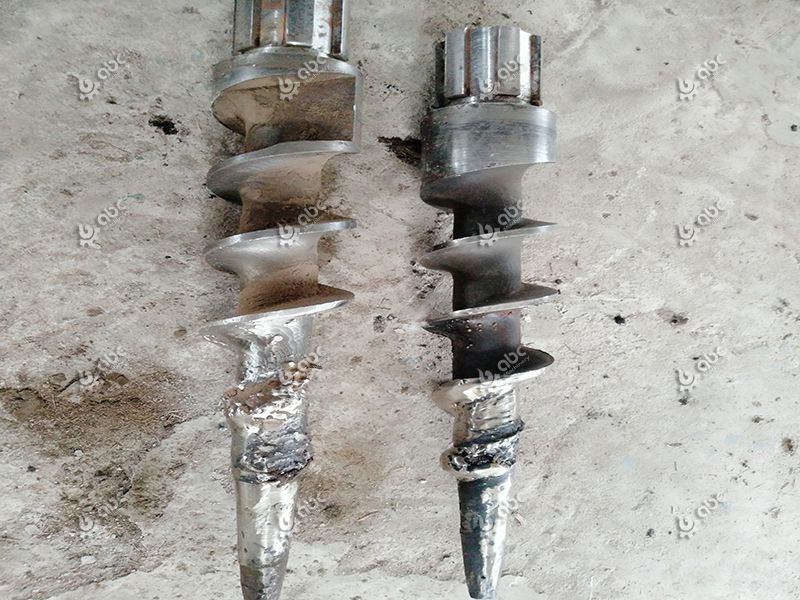

Briquette machine. After the raw material has been crushed and dried, the next step is the bar making stage. The crushed and dried material is processed into carbon rods (semi-finished products) under high temperature and pressure by the rod making machine. The rods can be made into 50mm, 60mm, 70mm and 80mm hollow rods according to customer requirements.
Video of Sugarcane bagasse production line
ABC Machinery has good technical equipment and various machine tools, and dozens of technicians are responsible for the design and production of the company's products. The company uses computer design tools to analyze, design, inspect, and test products to provide users with good products.
Over the years, ABC Machinery has received unanimous praise from customers for its excellent product performance, quality assurance and after-sales service. The company adheres to the modern enterprise management model, and welcomes friends from all walks of life to visit, guide and negotiate business!
