Hammer Mill

Hammer mill can grind wood chips, small branches, bamboo shavings, straw, stalk, and many other biomass wastes into 3-5mm long, so that such materials can be fed into the pellet mills for pelletizing, or into briquette machines for briquette making.

There are 2 kinds of hammer mills: small hammer mill used with small pellet mill; large hammer mill used with large pellet mill.

It is almost the most indispensable part for biomass pellet making.

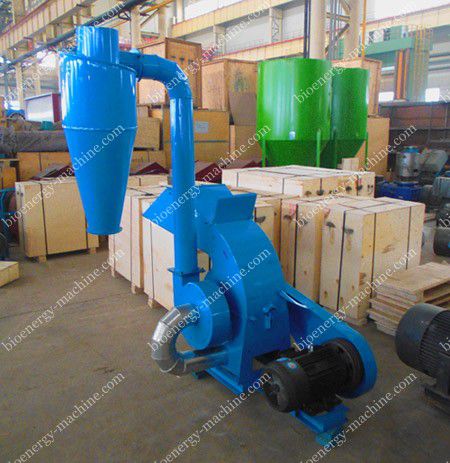

Small hammer mill

Small hammer mill is a basic part in small pellet plant. Many clients who purchase small pellet mill also buy a small hammer mill.

small hammer mill

Model Power Size(mm) Net weight (kg) Spindle Speed (r/min) Screen Capacity (kg/h)
TFS-420B-7.5 7.5KW (electric motor) 1200×1000×1220 285/310 3200 1.2-10 300-600
TFS-420B-11 11KW (electric motor) 1200×1000×1220 310/330 3200 1.2-10 300-600

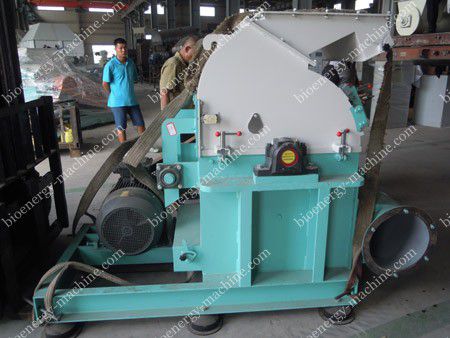

Large hammer mill

The large hammer mills can crush coarse fiber and large block materials, such as tree branch, bark, root, wood bricks, and so on.


Specifications
Model and specification SFSPMX80×45 SFSPMX80×60 SFSPMX80×80 SFSPMX80×100
Production output (t/h) 1.5~2 2~3 3~4 5~7
Rotor diameter(mm) 800 800 800 800
Width of crushing chamber (mm) 450 600 800 1000
Main shaft speed (rpm) 2400 2400 2400 2400
Hammer quantity 36 48 72 96
Equipped power(kw) 18.5/22 30/45 45/75 75/90/110
Bearing model NSK2216 NSK 2216 NSK 2317 NSK 2317
Belt model C2692*5 C2692*5 C2692*5 C2692*5
Anti-vibration pad 6   6   6   6
Size of sieve mesh 445*1250 595*1250 795*1250 995*1250
Size (mm) 2105*980*1600 2105*1172*1600 2105*1372*1600 2305*1520*1600

  • This series hammer mills adopt welded-steel plate structure, the electric motor and rotor are installed on the same foundation.
  • It adopts belt transmission; the rotor is checked by dynamic balance.
  • The feeding inlet is at the top of the hammer mill, so the machine can match with screw conveying or belt conveying system.
  • It is durable and safe to use, easy to install and operate; it has little vibration but high productivity.

BEFORE YOU SEND INQUIRY

Please provide us with project information as much as possible:

  • For a complete project: the material availability,the required output capacity,the process technology,your budgetary and financing status,the estimated starting time,etc.
  • For singular machinery: the model,the capacity,your budgetary information,other requirements,etc.
  • For spare parts: size and dimensions,material and weight,and your drawings with details,you can send the drawing to info@bioenergy-machine.com

Detailed information is greatly helpful for us to give you the best-customized offer/quotation at the soonest time.
