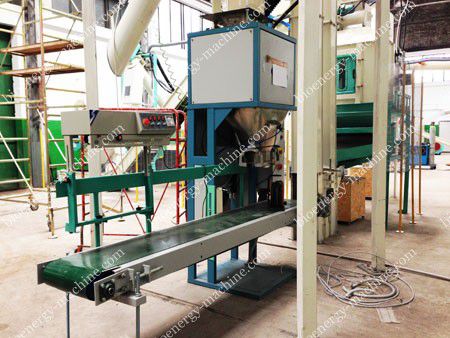

This semi-automatic pellet packing machine is composed by weighting system, conveying system, packing system and intelligent controller.
The package specification is 10-50kg per bag (22.065-110.231lbs).
For pellet productivity larger than 5ton/h, the fully automatic packing machine is suggested to use.
| Precision | +/-0.2% |
|---|---|
| Packing speed | 100~200bags per hour |
| Weighing scale | 10kg-50kg per bag |
| Power Supply | 220Va.c and 4N-380Va.c |
| Power Dissipation | 1.5kW |
| Compressed Air | 0.4MPa0.6MPa |
| Compressed Air Consume | 0.5m3 per hour |
Pellet packing machine advantages:
- Both automatic calibration and manual calibration available, reducing the error caused by long time using or ambient temperature changes
- Integrate circuit is adopted, stability and reliability guaranteed
- Friendly human computer interaction interface
